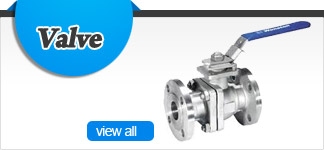

Valve

Name : Valve

  Enquiry
Valve
Description :

Presenting a variety of valves for use on steam, air, water, etc.

Operating Pressure Range: 0 - 5 MPaG

Operating Temperature Range: 0 - 425 °C


Stainless Steel Ball Valves
Ball valves suitable for steam lines.

  • Max. Operating Pressure: 10 barg
  • Max. Operating Temperature: 185°C
  • Full bore ball valve
  • Body: Stainless Steel

Application Area
Steam, water, hot water, air lines, etc

Lock Release Valves

Lock release valves to be installed on steam traps J3X and J5X for eliminating the steam-locking problem often associated with cylinder dryers, presses, jacket kettles etc.
• Max. Operating Pressure: 2.1 MPaG
• Max. Operating Temperature: 220℃
• For J3X and J5X steam traps

Application Area
By installing on J3X and J5X, cylinder dryers, presses, jacket kettles and other steam-using equipment prone to steam-locking.

Bellows Sealed Valves
Bellows sealed valves with a no-leak gland
Operating Pressure Range: 0 - 5 MPaG
Operating Temperature Range: 0 - 425 °C
• Max. Operating Pressure: 2.1/5.0 MPaG
• Max. Operating Temperature: 425℃
• Socket welded or flanged design
• Body: Carbon steel

Application Area
Steam, hot water.

Pressure Reducing Valves (With Built-in Separator and Trap)

Presenting pilot operated pressure reducing valves with built-in separator and trap, whose features result to supply dry steam or air with stable secondary pressure, improve product quality and/or heat efficiency. Local set or remote set types are available

Pressure Reducing Valves (Without separator and trap)

Presenting pilot operated pressure reducing valves to supply steam or air with stable secondary pressure for general use. Local set or remote set types are available.

Pressure Reducing Valves (Direct Acting for Steam and Air)

Compact, light-weight direct-acting pressure reducing valves.

Presenting check valves for steam and other fluids. Check valves with disc and spring construction that assures performance with installation in either vertical or horizontal pipelines.Automatic valves for preventing backflow.

Operating Pressure Range: 0.001 - 3 MPaG
Operating Temperature Range: 0 - 350 °C

Application Area
Suitable for use in the following applications:

CK3M, CKF3M, CK3MG, CKF3MG (metal valve seat) – steam.
CK3T (PTFE valve seat) – steam, hot water.
CK3R, CKF3R, CKF3RG ( Nitril or Fluorine rubber valve seat)
– non-hazardous gasses, air, hot water, water, etc.

Check valve

Presenting check valves for steam and other fluids. Check valves with disc and spring construction that assures performance with installation in either vertical or horizontal pipelines.Automatic valves for preventing backflow.

Operating Pressure Range: 0.001 - 3 MPaG
Operating Temperature Range: 0 - 350 °C

Application Area
Suitable for use in the following applications:

CK3M, CKF3M, CK3MG, CKF3MG (metal valve seat) – steam.
CK3T (PTFE valve seat) – steam, hot water.
CK3R, CKF3R, CKF3RG ( Nitril or Fluorine rubber valve seat)
– non-hazardous gasses, air, hot water, water, etc.

Operating Pressure Range: 0 - 4.6 MPaG
Operating Temperature Range: 0 - 425 °C
